Floor build up heights explained

Planning an underfloor heating installation and wondering how much height it will add to your floor? This guide explains floor build-up heights, how different floor finishes affect the overall depth, and what to consider around doors and room transitions when installing a Wunda Rapid Response® underfloor heating system.

Get your free underfloor heating system design

Understanding your finished floor height

Installing the Rapid Response® system will slightly increase the subfloor height. By considering floor heights during the planning stage, it’s easy to achieve a seamless finish throughout your home and ensure features such as doors, skirting boards and kitchen units work perfectly with your new floor.

In most projects, these adjustments are straightforward when considered during the planning stage.

Wunda Rapid Response® boards installed throughout ground floor

How much floor height do Wunda Rapid Response® boards add?

The additional height added by a Wunda Rapid Response® installation depends on the boards chosen and the floor finish being installed above it.

The total floor build-up typically includes:

The Rapid Response® board itself (16mm or 20mm)
Any preparation or intermediate layers required
Your finished floor covering

Find out more about Wunda Rapid Response®

Floor build-up by floor finish

The total floor build-up will vary depending on the floor finish you’re planning to install.

Typical floor finishes include:

Engineered wood
Laminate flooring
Luxury vinyl tile (LVT)
Carpet
Ceramic or porcelain tiles

Each finish has its own installation requirements and overall thickness. Your flooring supplier can confirm the exact build-up for your selected product.

Find out more about floor finishes

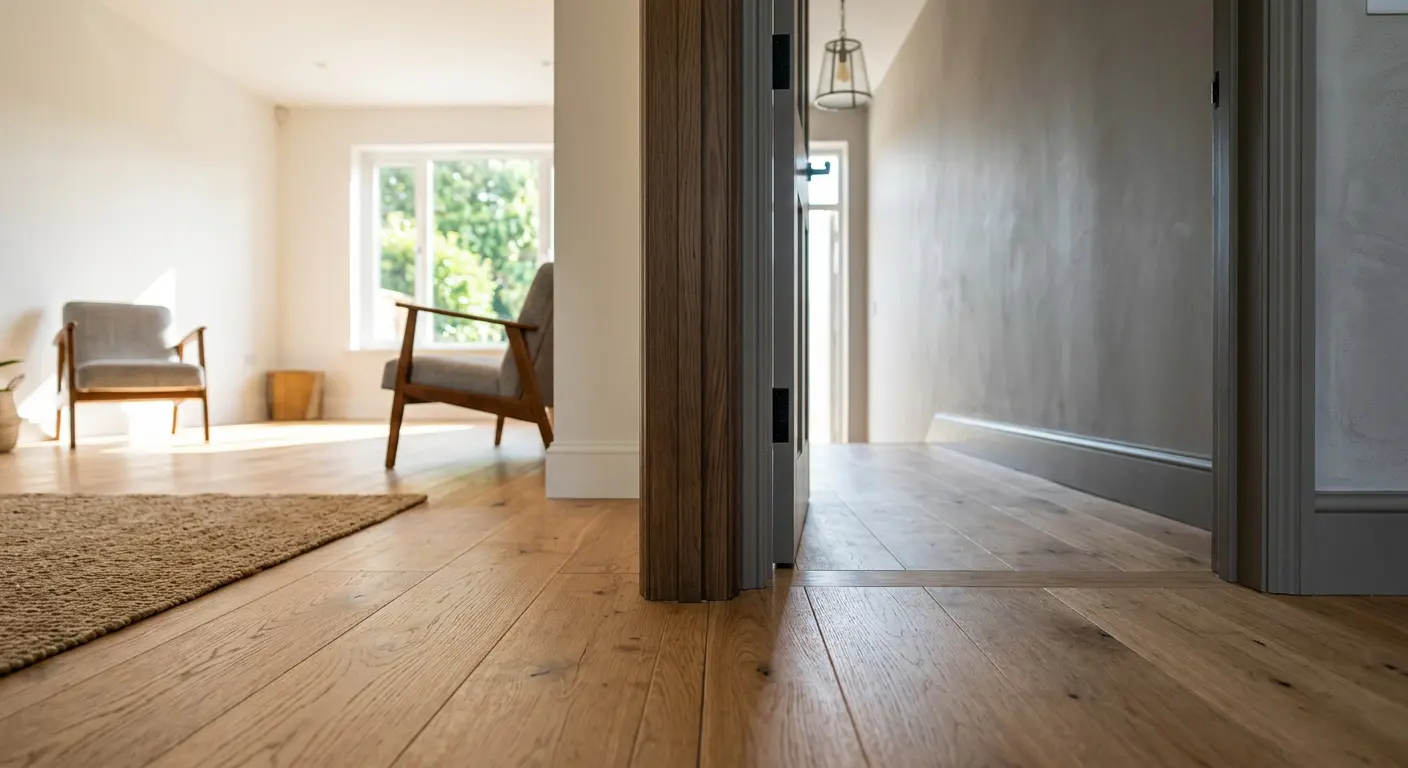

Modern home doorway threshold showing the transition between two connected interior spaces.

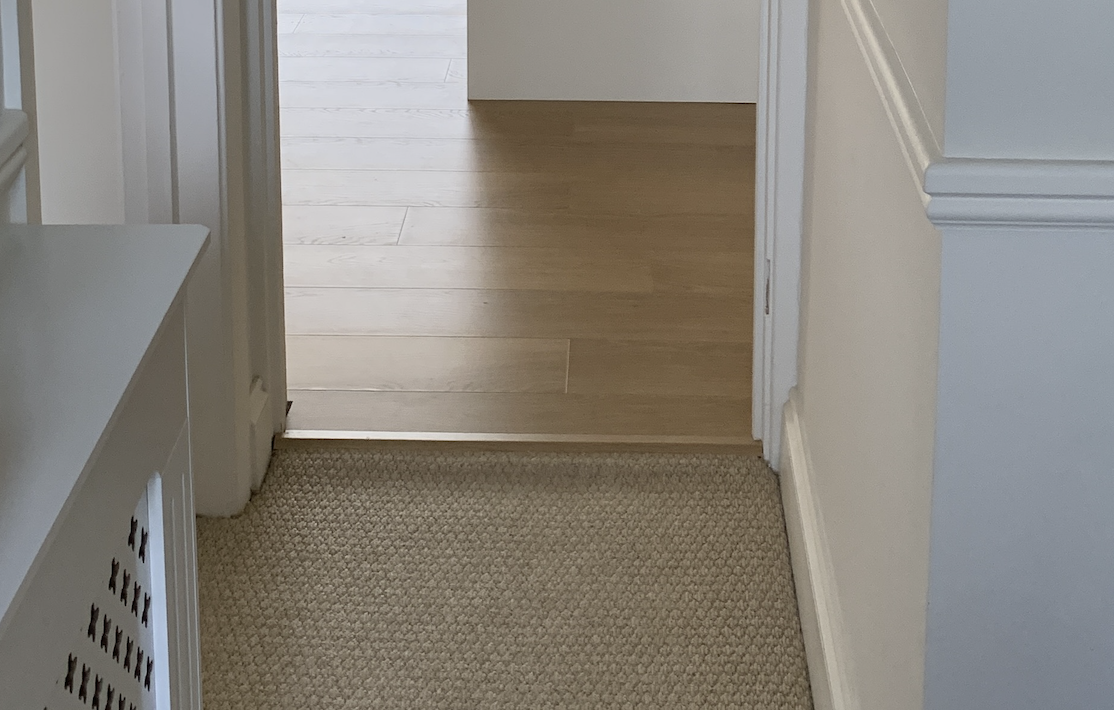

What happens at doorways and room transitions?

Floor heights do not always match perfectly between neighbouring rooms, particularly in renovation projects.

Where floor levels differ, several solutions may be possible:

Threshold strips between rooms
Small ramps or transitions
Stepped changes where appropriate

If existing floor heights already vary throughout the property, these differences should be considered during the design stage.

For installations that span areas with different floor levels, pipework may sometimes be routed into lower zones where there is a practical method of concealing the pipes, such as within walls or timber steps. In some situations, a separate heating zone may provide the most practical solution.

installing Wunda Rapid Response® boards in small room

Can Wunda underfloor heating be installed in just one area?

Yes. Underfloor heating can be installed in a single room, an extension, or a specific area of a property.

Where the heated room sits higher than adjoining areas due to the floor build-up, a small step or ramp will need to be incorporated at the threshold to go from one level to the other.

Find out more about room types

Common Build-Up Height Questions

This depends on the system chosen, any intermediate layers required, and the thickness of your final floor covering.

Possibly. If the finished floor height increases, doors may need adjusting to maintain the correct clearance.

In most cases, yes. However, build-up requirements vary depending on the flooring material and manufacturer recommendations.

Not necessarily. In many cases, professional installers can create smooth transitions using thresholds or suitable floor levels.

Not sure what build-up you’ll need?

The required floor build-up depends largely on your chosen floor finish and the construction of your existing floor.

If you’re unsure which system or floor finish is right for your project, our team can help you understand the available options and identify the most suitable solution before installation begins.

Need advice? Contact our team for guidance on floor build-up requirements and compatible flooring options.
